A bit of context

I don’t care about the context, show me the solution!

Last week my father sent me a message asking if I could build an electronic spreadsheet of the following image.

Looking at the image I promptly reply with “Can’t you use Excel for this?”

Then when I got home I opened my Excel and started to create a simple plan with the data from the image and that’s when I saw the notes.

This note says “Days = Difference between previous and actual date”. This was the moment when my Excel skills failed me! I tried to create a form input, but my research led me to some Visual Basic code and good old visual designer which I don’t want to play with it anymore. So I stopped and put some thinking on the issue.

• “What are my options?”
• “What do I know?”
• “This thing need to work on an offline environment” - There’s no internet where he use this

Building a desktop app means I’ll need to create a setup, send to him, control the installation and updates. So is not a good option. A web page seems simpler to solve the deployment, I’m currently working with React, so no learning curve.

Based on this I though about doing an PWA app.

According to Wikipedia this is a list of things your app should tick to be called as PWA.

• Progressive - Work for every user, regardless of browser choice because they’re built with progressive enhancement as a core tenet.
• Responsive - Fit any form factor: desktop, mobile, tablet, or forms yet to emerge.
• Connectivity independent - Service workers allow work offline, or on low quality networks.
• App-like - Feel like an app to the user with app-style interactions and navigation.
• Fresh - Always up-to-date thanks to the service worker update process.
• Safe - Served via HTTPS to prevent snooping and ensure content hasn’t been tampered with.
• Discoverable - Are identifiable as “applications” thanks to W3C manifests and service worker registration scope allowing search engines to find them.
• Re-engageable - Make re-engagement easy through features like push notifications.
• Installable - Allow users to “keep” apps they find most useful on their home screen without the hassle of an app store.
• Linkable - Easily shared via a URL and do not require complex installation.

With that in mind, let’s go to my solution.

1. The App

To create the app I used the Create React App project from Facebook. The output is a basic app with a service worker in place. So with a simple command I can check some items from the PWA list.

• Connectivity independent
• Fresh

This is really nice, but still have some checkboxes to tick.

2. Bootstrap

The app looks nice but it does nothing. Knowing I’ll need to create a simple form for data input and a table to show the data, I’ve pulled the Bootstrap 4 package and changed the inport from index.html.

And now I can tick one more item.

• Connectivity independent
• Fresh
• Responsive

That’s really nice, I have an app with 3 checkboxes ticked, but what about the functionality? It’s time to write some code.

3. React App

I’m not going into much detail here, it’s not the intention of the post.

The app consists in a form with three fields pushing into an array and a table with the array contents.

All work fine, but what about persistence? I need to save this data somewhere.

4. Firebase

After a quick research I’ve choosed Firebase to persist my data. It has a service called Realtime Database where I can save documents. It’s Javascript SDK has support for offline access and syncronization, so I don’t lose my Connectivity independent tick.

The next challenge is to integrate Firebase SDK to React, that’s when come in handy a simple package called Re-Base, it’s integration is very easy and I only needed to write a few lines of code to have everything in place.

After that integration I could say the app was ready. It was saving the data online and offline. Most importantly was the syncronization happening when connection was restablished. Because the app have a service worker registered, I don’t need to open the app to syncronize, it just works.

With the data being saved online, now was time to secure the data.

5. Authentication

To solve the Autentication issue Firebase came in handy again. It’s SDK has auth integration with Firebase Authentication, so I only needed to build a simple account creatiion form and a login page. After that I configured my database security and it’s all in place, each user has access only to their data.

To have another checkbox ticked I need to solve the hosting.

6. CI/CD

To deploy my code as easly as possible I choosed Netlify as it can integrate with a Git repository and do the deployment. When configuring the app Netlify could identify it was a Create React App application and suggested me the build command. So it was a next>next>finish experience to have my site up and running on my custom domain with a Let’s Encrypt certificate.

After that I was able to tick on last checkbox

• Connectivity independent
• Fresh
• Responsive
• Linkable
• Safe

The Result

At the end I spend less than a full day of work of my free time build a fully function app hosted on a HTTPS address with online database and offline capabilities.

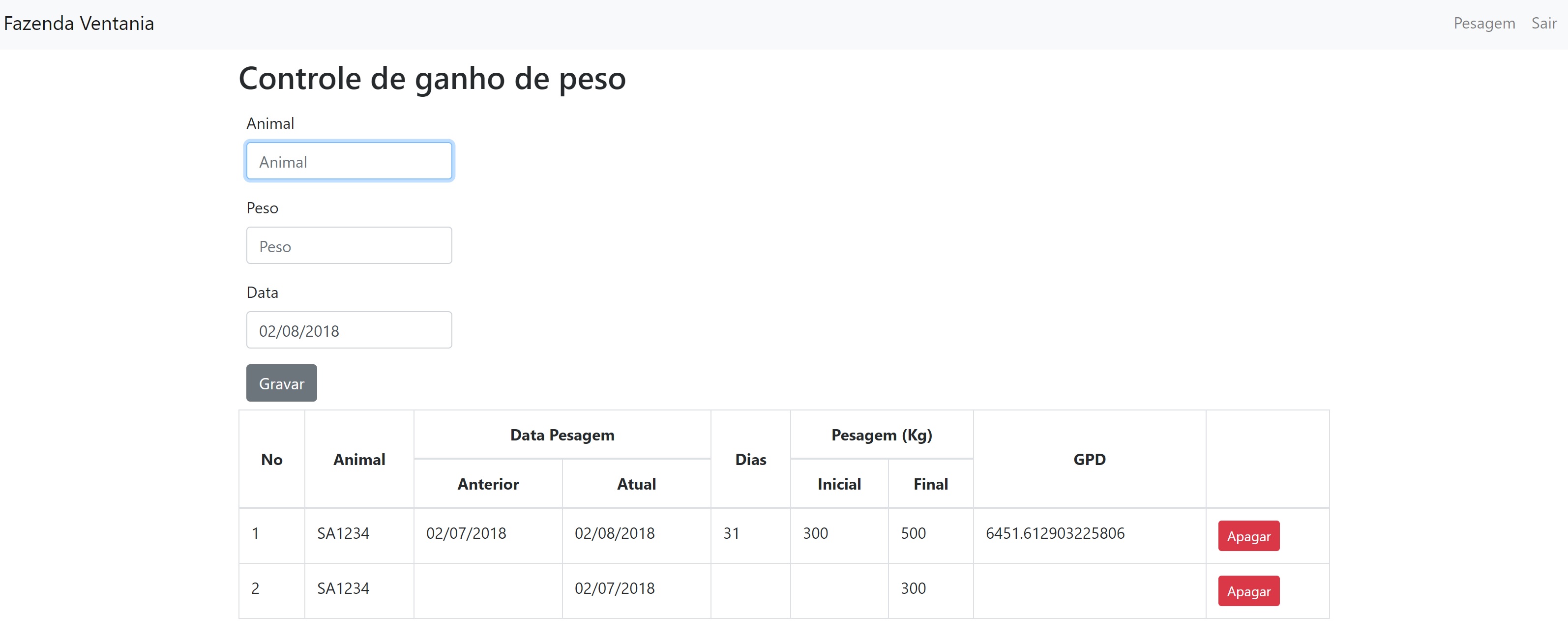

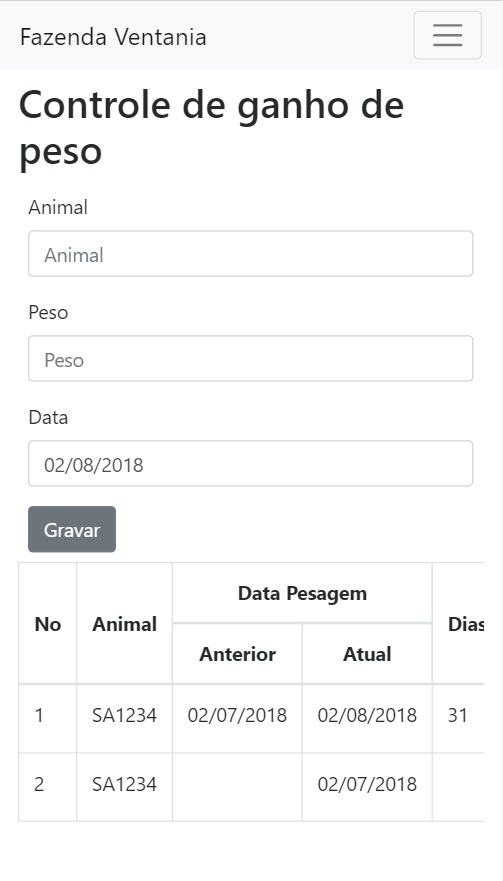

If you’re curious, below are a couple of screen shots. The source code can be found on Github.
